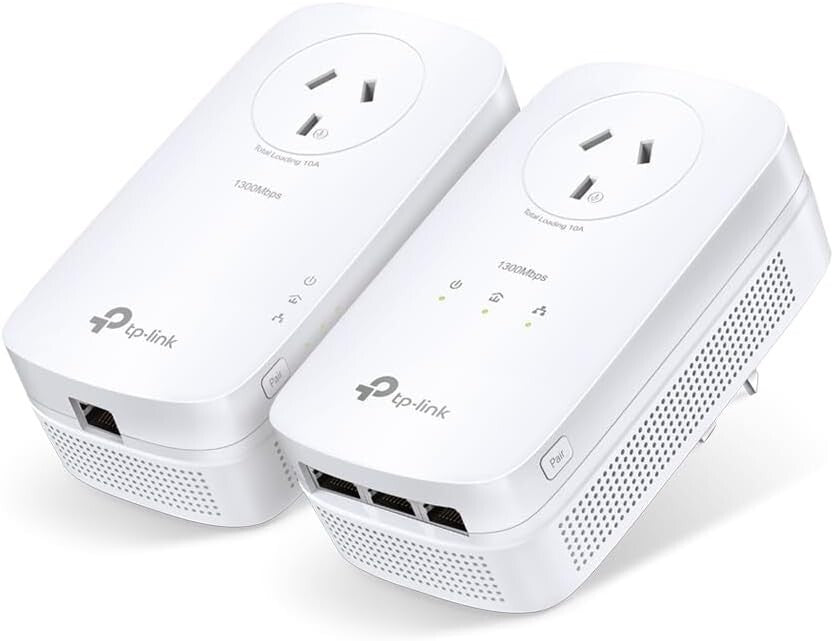

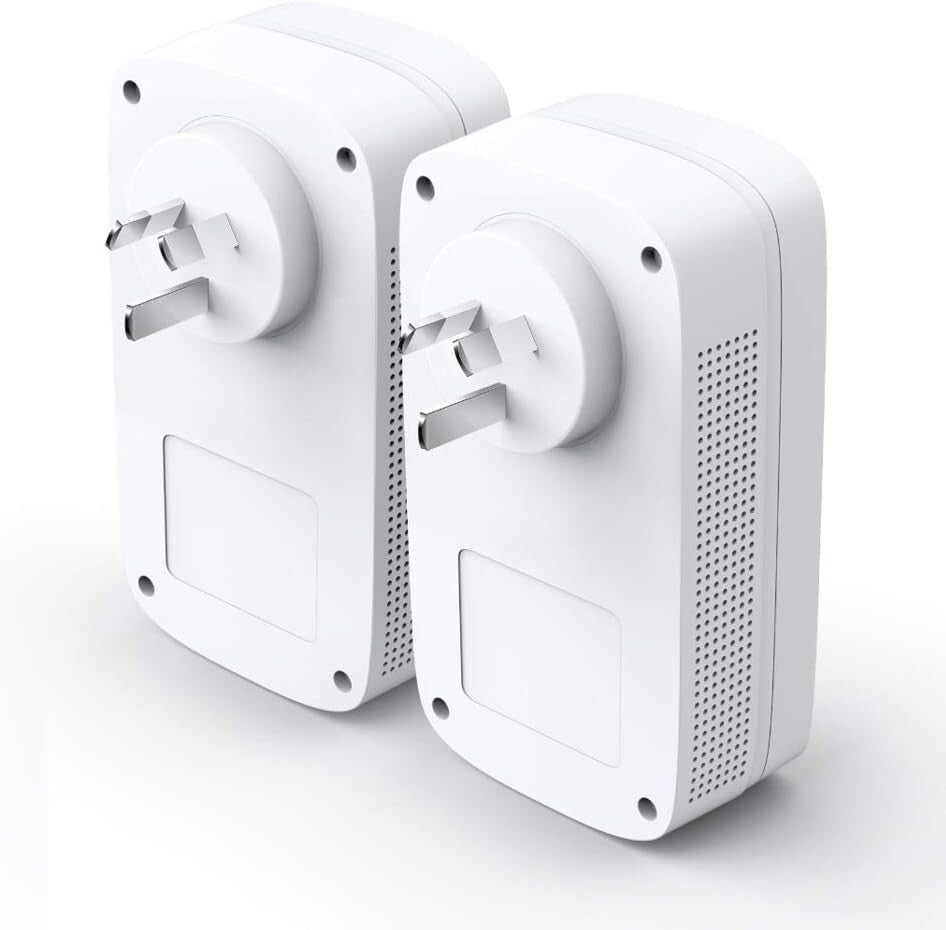

TP-Link AV1300 Passthrough Powerline Starter Kit (TL-PA8033P KIT V4)

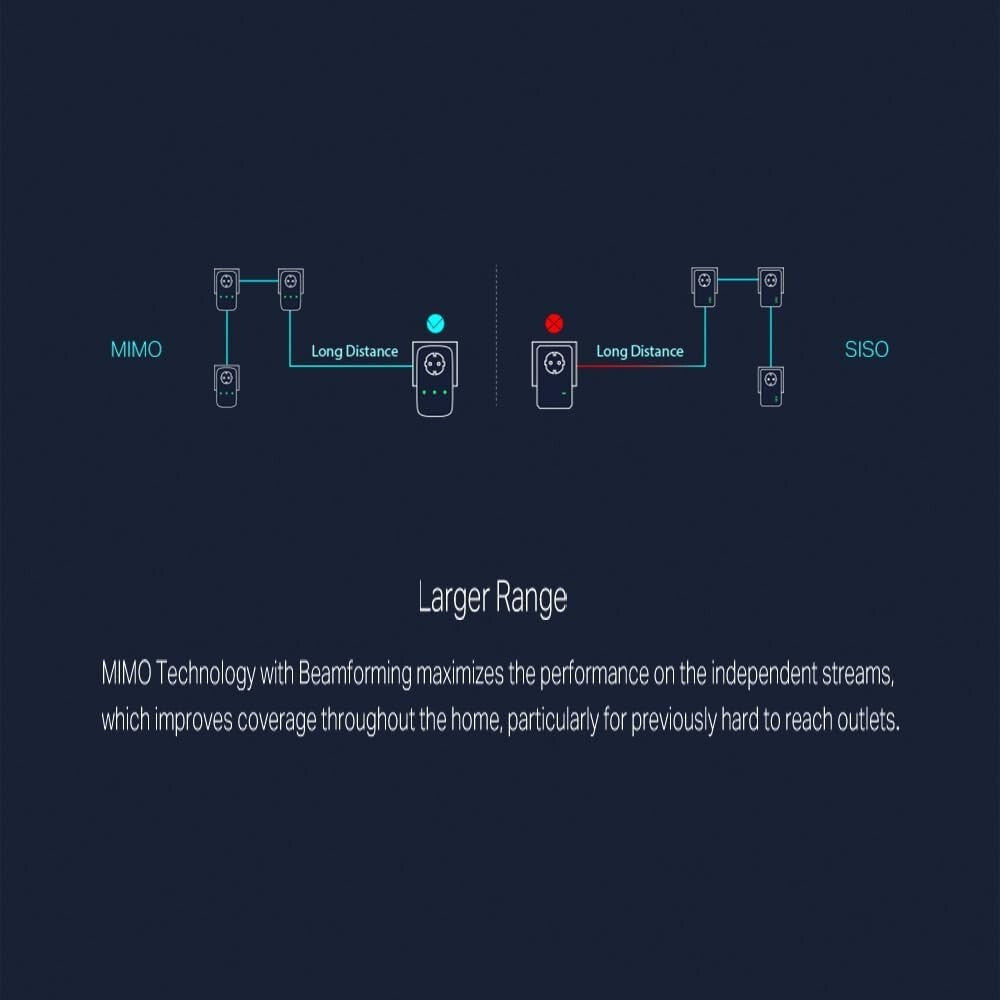

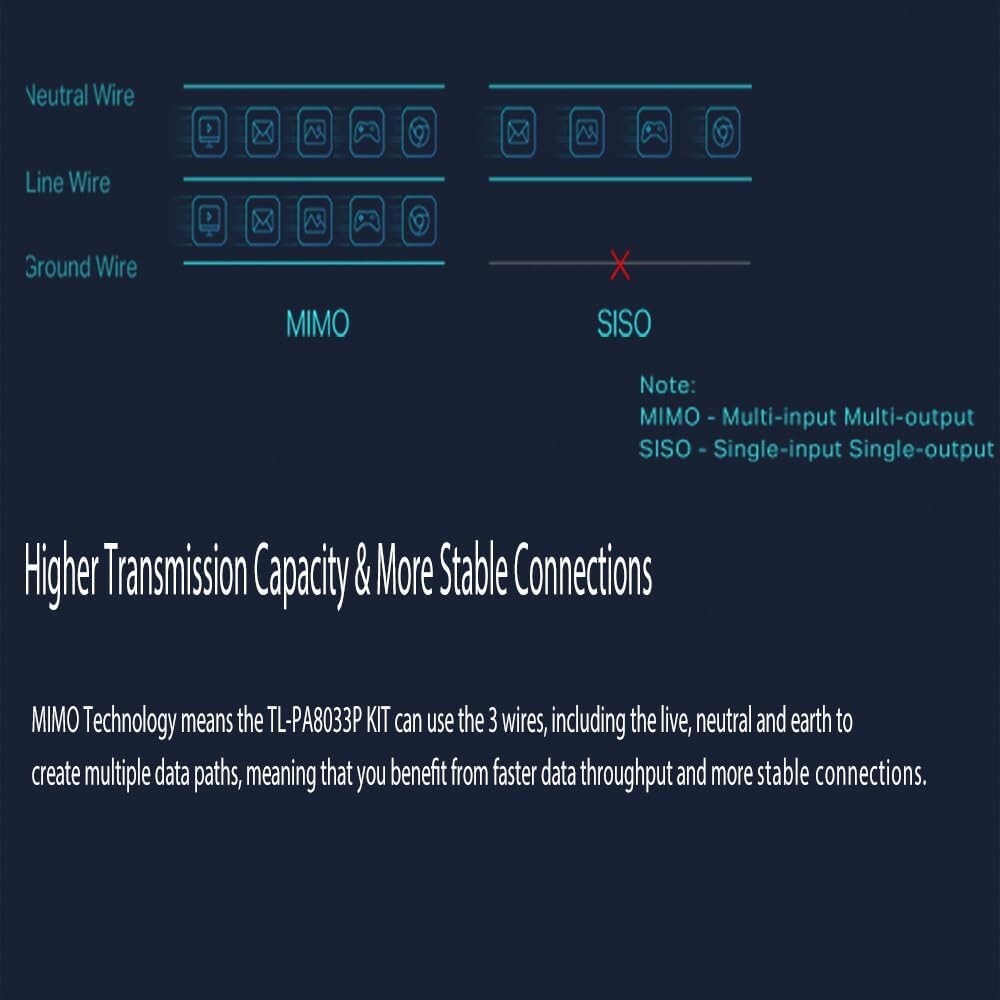

1300 Mbps* Powerline with 2×2 MIMO
Advanced HomePlug AV2 1300 Mbps† Powerline accompanied with 2×2 MIMO technology significantly improves data transfer rates, stability and coverage.

Gigabit Ethernet for Fast Connections
Three gigabit Ethernet ports provide reliable high-speed wired connections for game consoles, smart TVs, STB and more.

Don’t Lose an Outlet
An integrated socket lets you power regular devices as normal, and a built-in noise filter prevents them from interrupting the powerline signal.

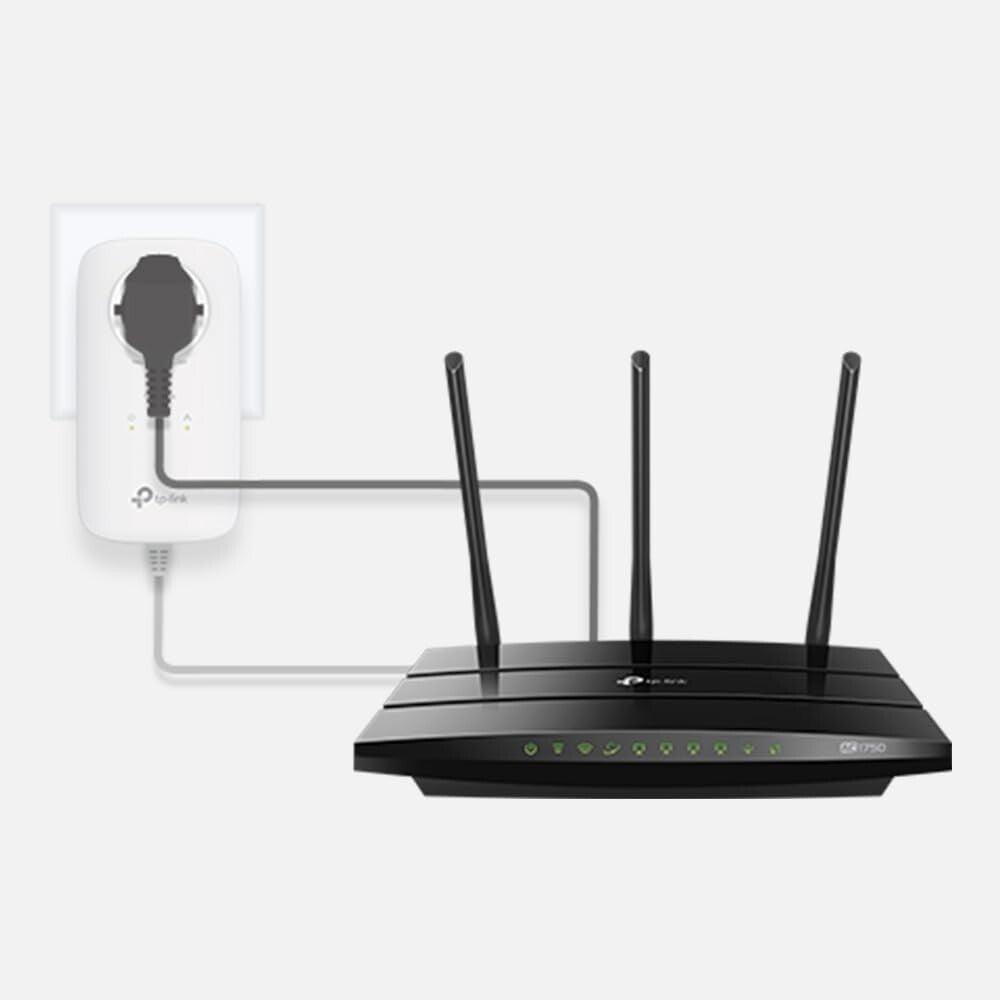

Get Reliable Gigabit Network from Any Outlet
The AV1300 3-Port Gigabit Passthrough Powerline Starter Kit brings internet to any area with a power outlet using your home’s electrical wiring.
•No need for new wires or drilling
• Network passes through walls and floors

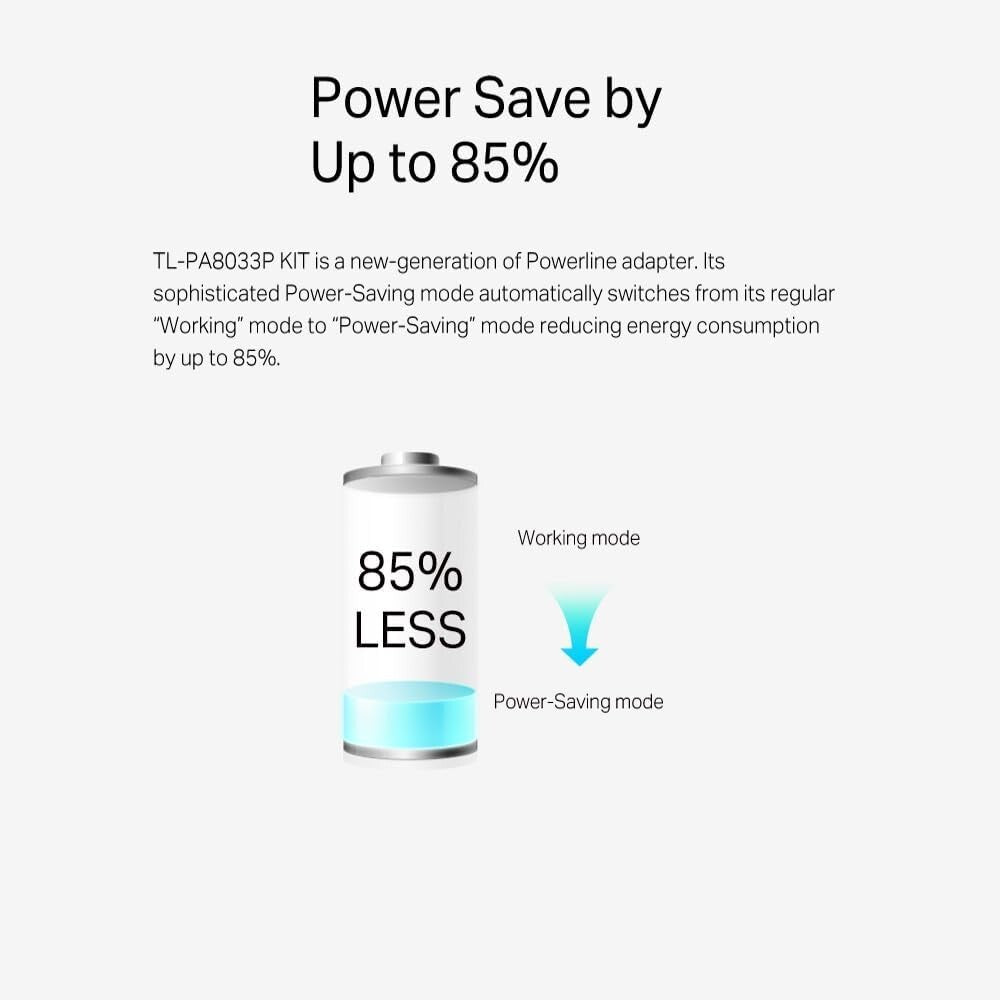

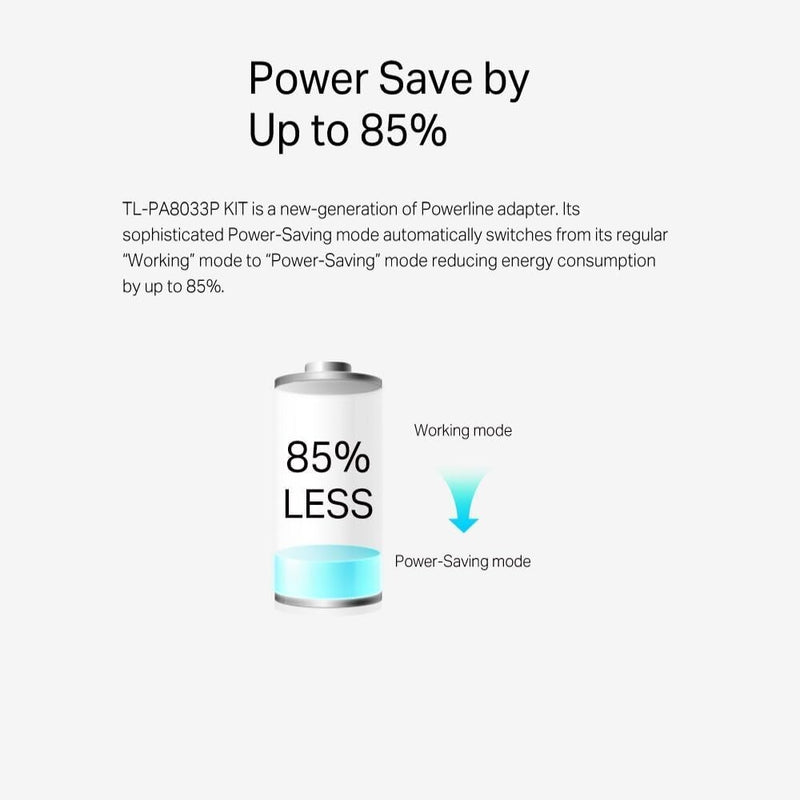

Power Saving
Automatically switches to “Power-Saving” mode when not in use, reducing its energy consumption by up to 85%*

Speed
· Ultra-fast Powerline Speed – HomePlug AV2 standard compliant, high-speed data transfer rate of up to 1300Mbps, ideal for Ultra HD streaming and online gaming
· Gigabit Ports – Gigabit Ethernet ports allow your TVs, game consoles or PCs to connect to the internet at high speeds

Range
· 300-meter Range – Up to 300-meter range over the household power circuit

Reliability
· Mains Filter – Mains Filter inside the outlet reduces electrical noise interference and improves powerline communication performance

Ease of Use
 · Plug, pair and play – Plug, pair and play, no configuration required
· No new wires – No new wires, use existing electrical wiring to expand your home network
· Keep your outlet – An integrated socket lets you power regular devices as normal, and a built-in noise filter prevents them from interrupting the powerline signal
· TP-Link tpPLC – Allows you to easily manage your network using the tpPLC Utility

Security
· Pair Button – 128-bit AES encryption easily at a push of the "Pair" button
Energy Saving
· Power Saving – Power Saving Mode helps reducing power consumption by up to 85%

Specifications

Hardware
· Plug Type: EU
· Standards and Protocols: HomePlug AV1.1, HomePlug AV2.0,IEEE
1901,IEEE 802.3,IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab
· Power Consumption: Maximum: 5.5W
 Typical: 5.3W
 Standby: 1.4W
· Range: 300 meters over electrical circuit
· Interface: Gigabit Ethernet Ports, Power Socket
· Button: Pair Button
· LED Indicator: Power, Powerline, Ethernet
· Dimensions (W x D x H): 5.2 x 2.8 x 1.7 in. (131 x 71x 42 mm)

Software
· Modulation Technology: OFDM (PLC)
· Encryption: Powerline Security: 128-bit AES

Others
· Certification: CE, RoHS
· Package Contents:
 Powerline Adapter TL-PA8010P, TL-PA8030P
 2 × Ethernet Cable
 Quick Installation Guide
· System Requirements:
 Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
· System Requirements for tpPLC Utility:
 Windows XP/Vista/7/8/8.1/10 and Mac OS X (10.7 or later)
· Environment:
 Operating Temperature: 0°C~40°C (32°F ~104°F)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
 Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright ©2020 TP-Link Technologies Co., Ltd. All rights reserved.
* Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*Maximum Powerline signal rates are the physical rates derived from HomePlug AV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and
network overhead, AFCI circuit breaker, and Powerline being in a separate circuit.
*Actual power saving data will vary because of the network conditions and environment factors.
