Victron Energy Orion-TR Smart 12/12-30A (360W) Non Isolated DC-DC Charger
- Regular price
- $289.00
- Sale price
- $289.00
- Regular price
-
Change of Mind Returns accepted within 7 days of delivery. Customer provides return shipping.
Items must be returned in their original packaging and in the same condition as received. If the item does not meet our return condition policy, a full refund may not be issued.
Expect prompt delivery and easy tracking — every order comes with updates along the way.
About the Product
Item Condition: opened package, new condition.
Item is untested, we will cover return postage and provide a refund if it is found to be faulty. SN: HQ2537W**Y7
-
Tax invoice available upon request
-
All items are tested before listing. While we aim for top quality, occasional defects may still occur. However, your money-back is guaranteed. Return postage will be covered if the product is received defective.
Images are for illustration purposes; actual item may vary.

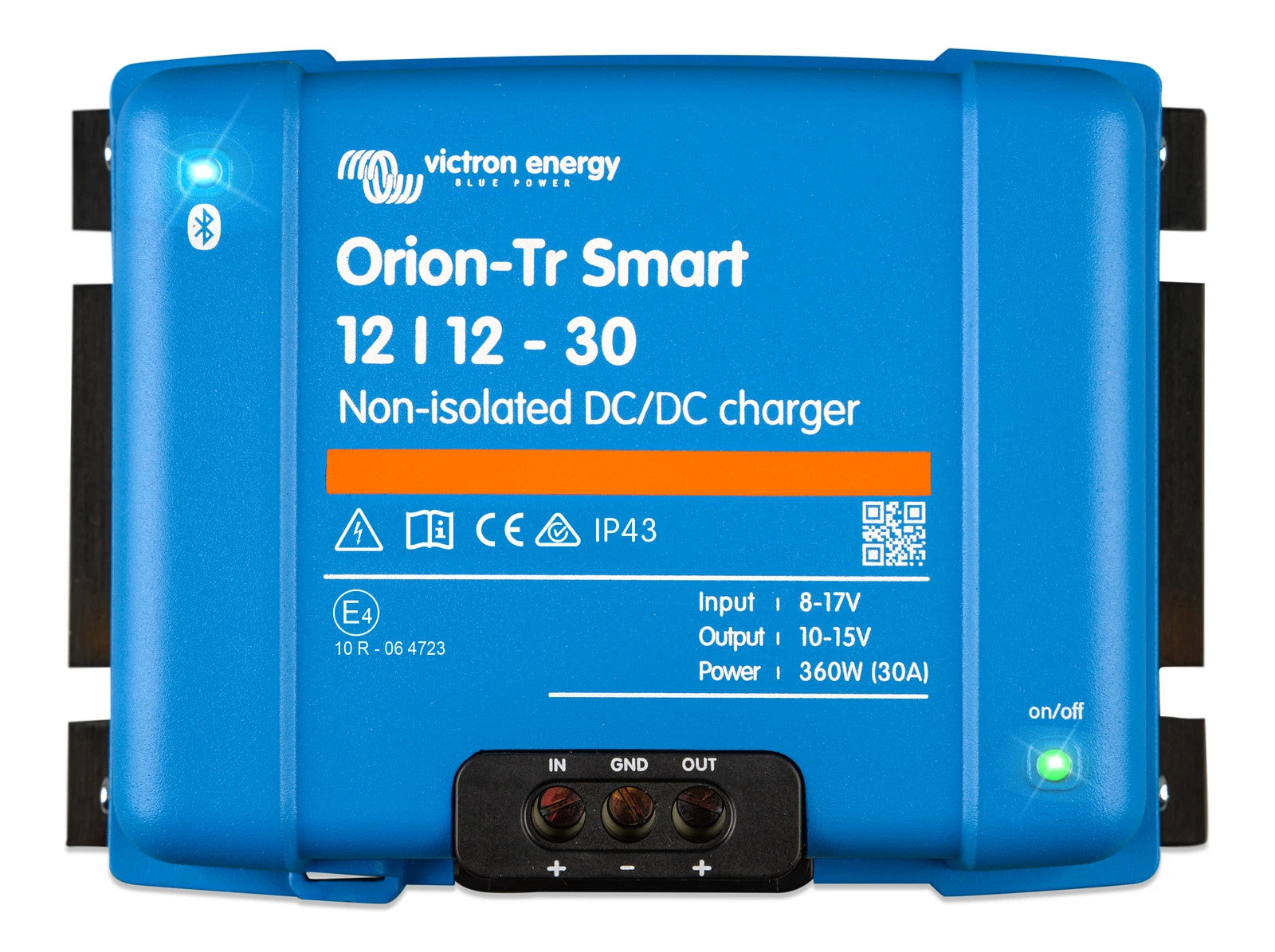

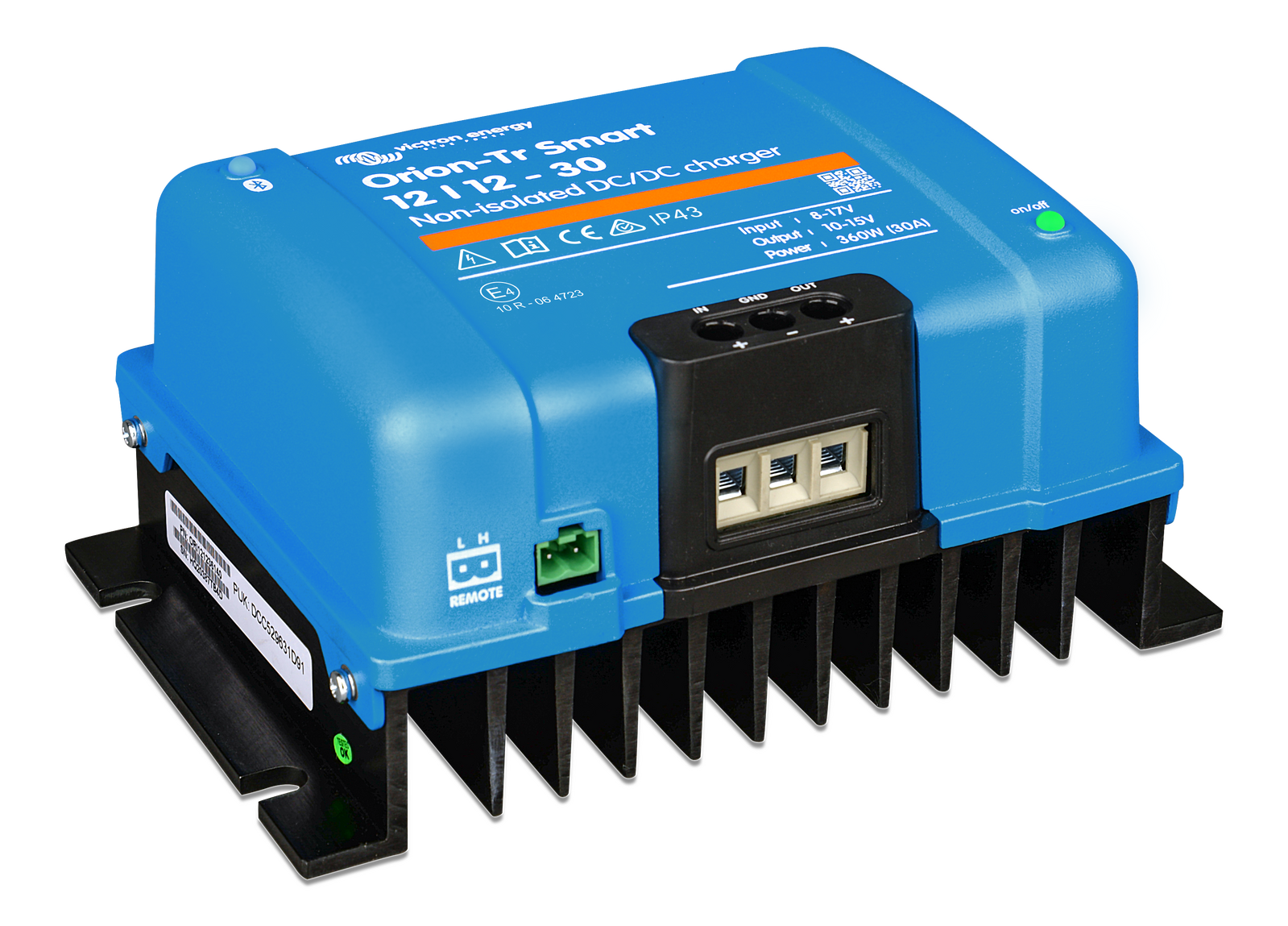

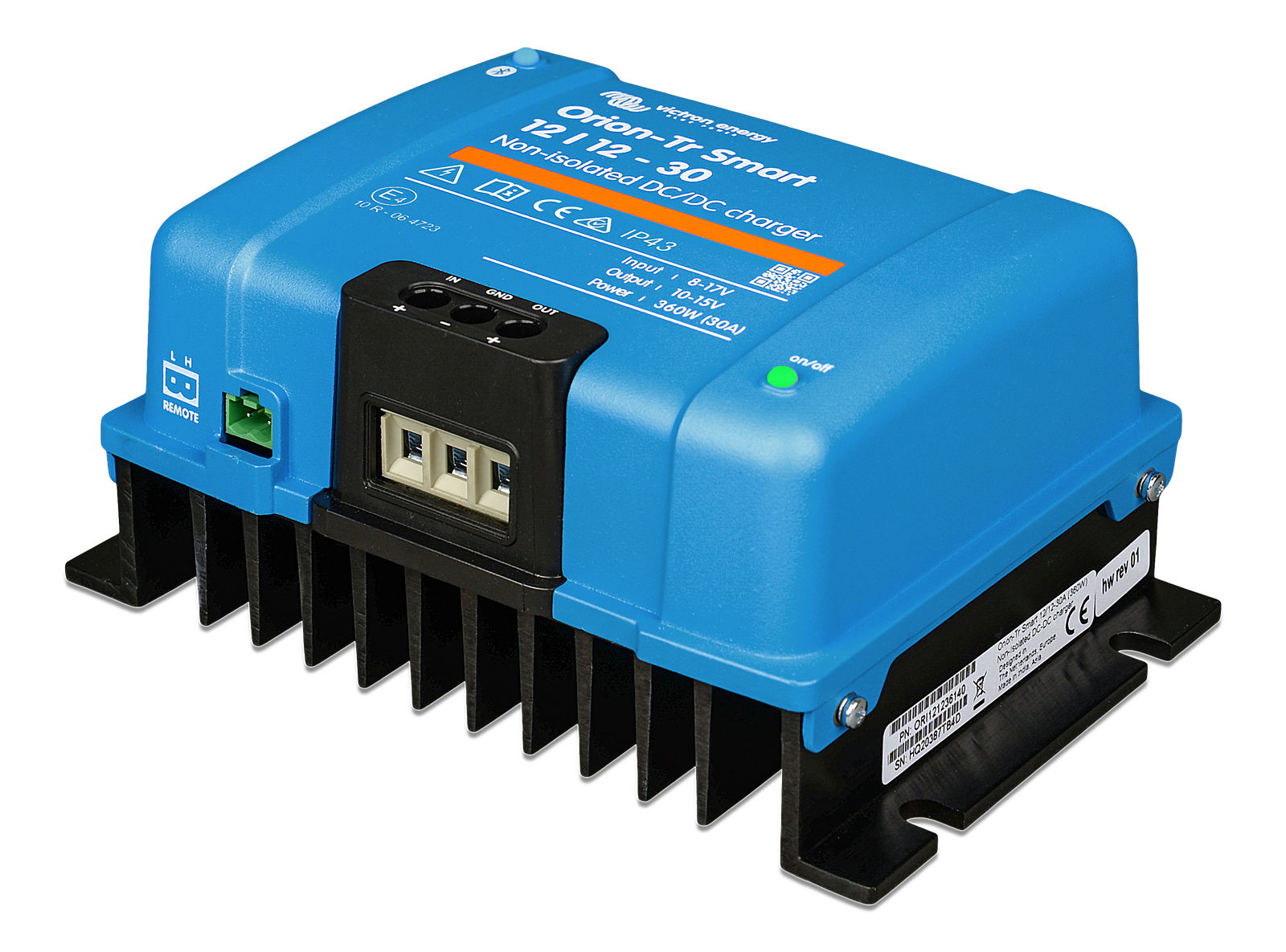

Orion-Tr Smart DC-DC Non-Isolated charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

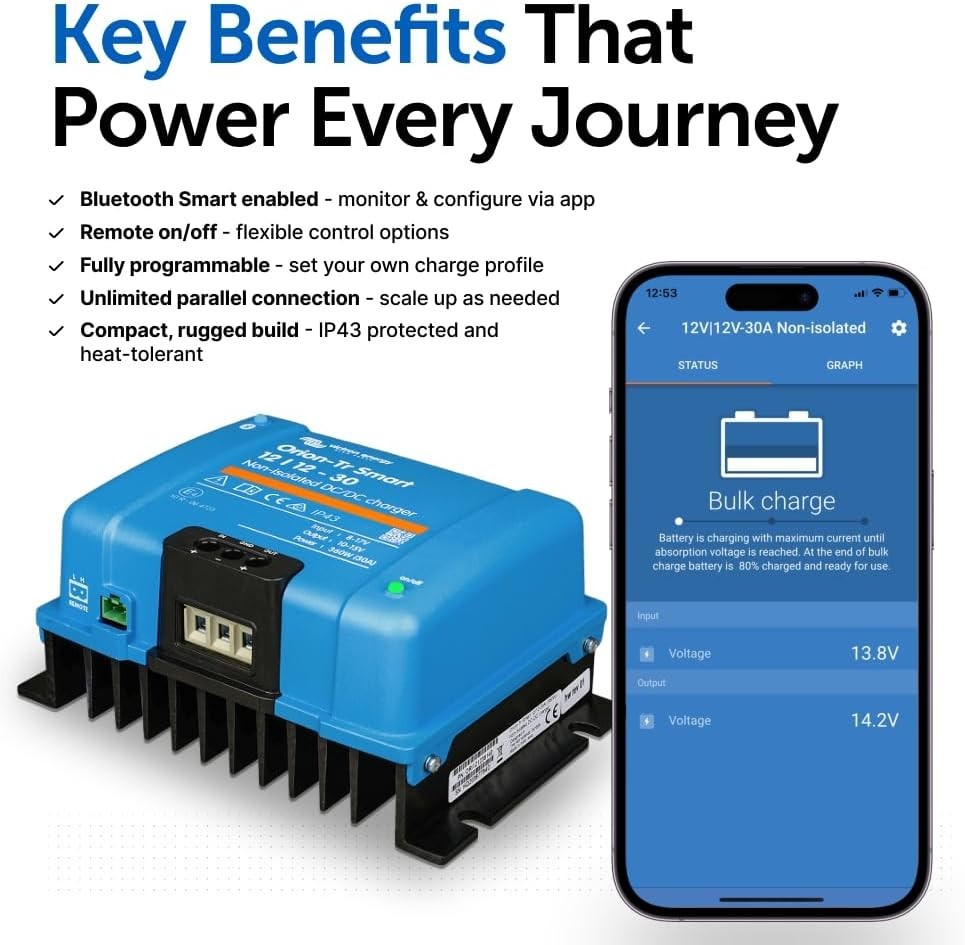

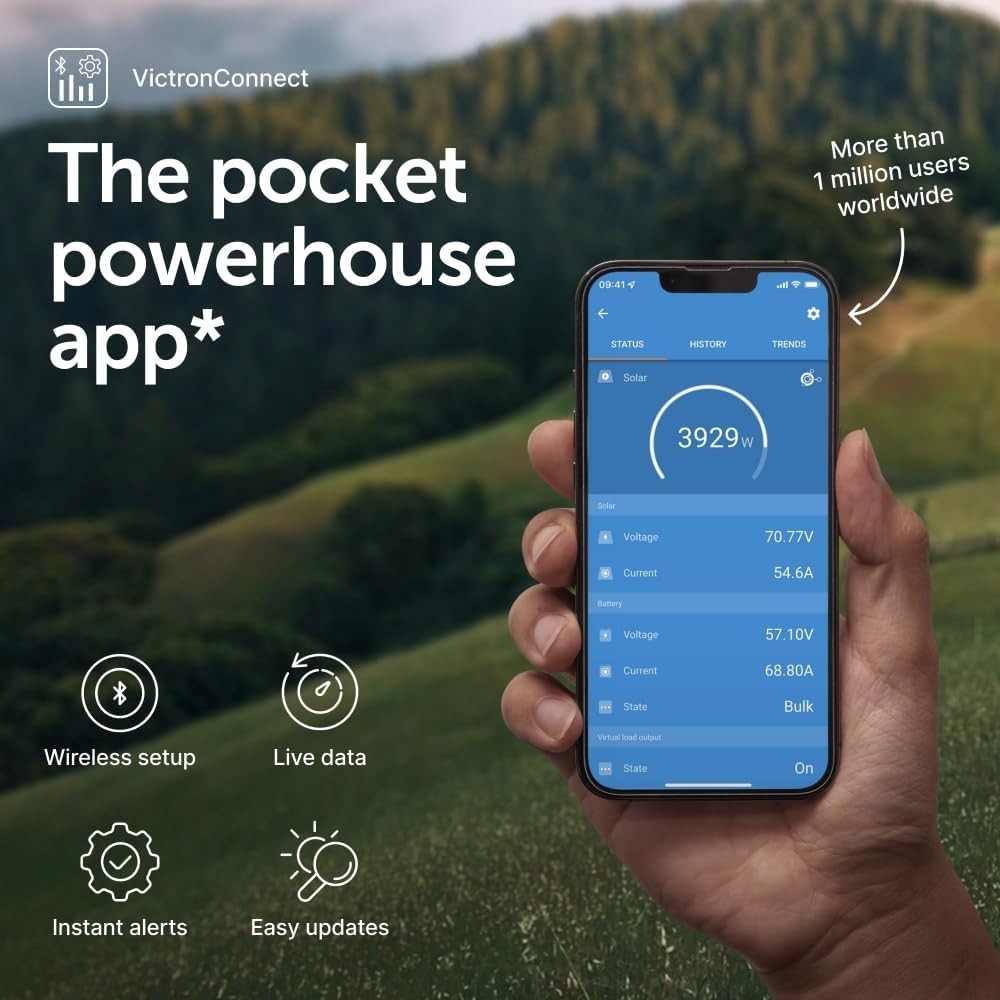

Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to
change settings and to update the charger when new software features become available.
Fully programmable
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
- For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries absorption time is fixed, default 2 hours.
- Alternatively, a fixed output voltage can be chosen.
Remote on-off
A remote on/off switch or relay contact can be connected to a two-pole connector.
Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines)The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details)
The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
| Model | 12/12-30 (360 W) | 12/24-15 (360 W) | 24/12-30 (360 W) | 24/24-17 (400 W) |
|---|---|---|---|---|
| Input voltage range (1) | 8 - 17 V | 8 - 17 V | 16 - 35 V | 16 - 35 V |
| Under voltage shut down | 7 v | 7 v | 14 v | 14 v |
| Under voltage restart | 7.5 v | 7.5 v | 15 V | 15 V |
| Nominal output voltage | 12.2 v | 24.2 V | 12.2 v | 24.2 V |
| Output voltage adjust range | 10-15 v | 18 - 30 V | 10-15 v | 18 - 30 V |
| Output voltage tolerance | +/- 0.2 v | |||
| Output noise | 2 mV rms | |||
| Cont. output current at nominal output voltage and 40 °C | 30 A | 15 A | 30 A | 17 A |
| Maximum output current (10 s) at nominal output voltage minus 20 % | 40 A | 25 A | 40 A | 25 A |
| Short circuit output current | 60 A | 40 A | 60 A | 40 A |
| Cont. output power at 25 | 430 W | 430 W | 430 W | 480 W |
| Cont. output power at 40 | 360 W | 360 W | 360 W | 400 W |
| Efficiency | 87 % | 88 % | 88 % | 89 % |
| No load input current | < 80 mA | < 100 mA | < 100 mA | < 80 mA |
| Standby current | Less than 1mA | |||
| Galvanic isolation | No | |||
| Operating temperature range & Humidity | -20 to +55 °C (derate 3 % per °C above 40 °C) Max. 95 % non-condensing | |||
| DC connection | Screw terminals | |||
| Maximum cable cross-section | 16 mm² AWG6 | |||
| Protection category | IP43 (electronic components), IP22 (connection area) | |||

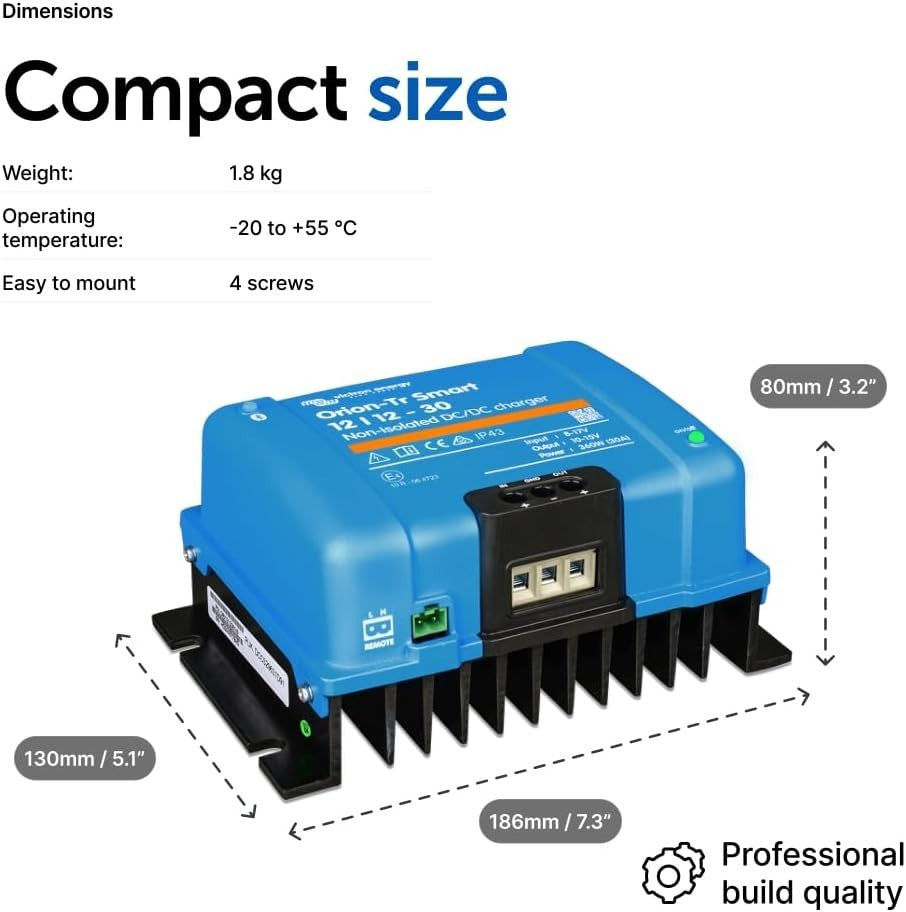

| Dimensions H x W x D (mm) | 130 x 186 x 70 mm | |||
| Weight | 1.3 kg (3 lb) | |||
- If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.
Brand: Victron Energy
Manufacturer Part Number: ORI121236140
