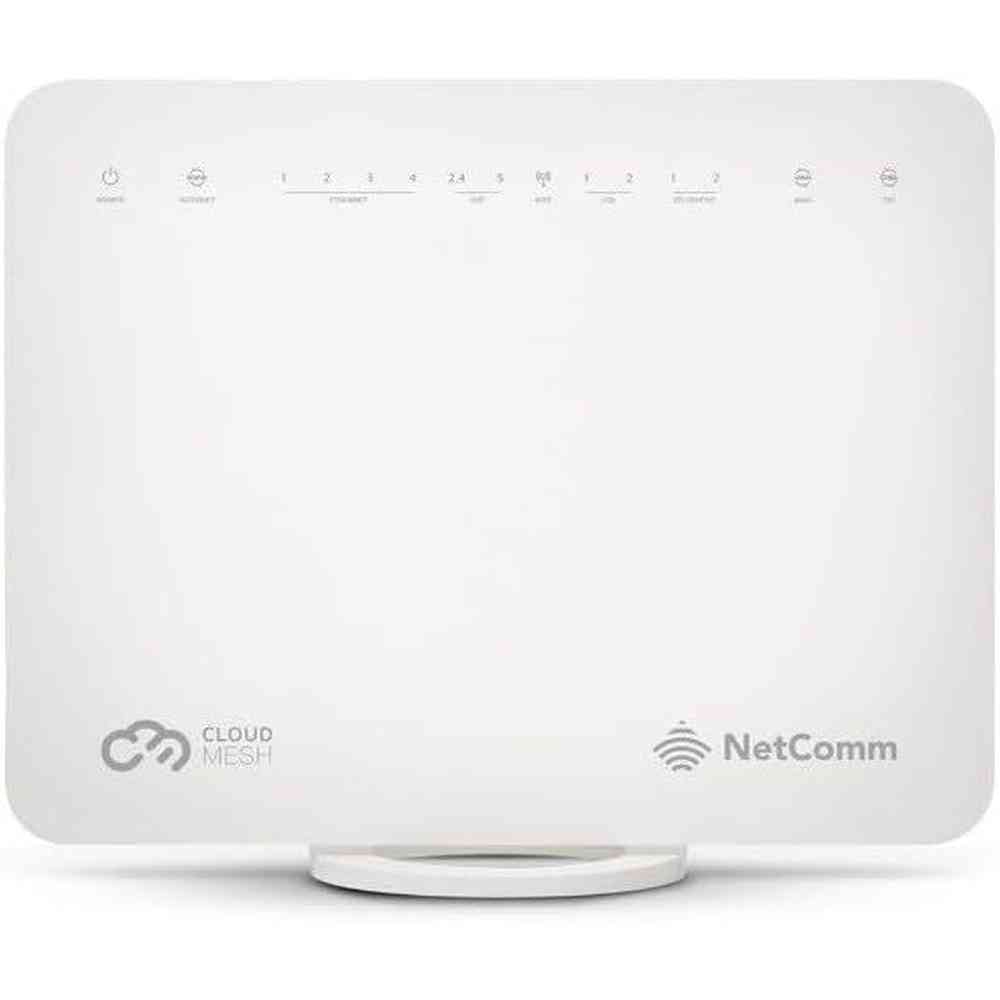

Netcomm NF18MESH CloudMesh ADSL/VDSL NBN Voice Gateway Whole Home WiFi Mesh

Item Condition: Usedwith original box and accessories, near new condition.  2-month warranty included eBay Full Protection available on selected items (purchased... Read More
$79.00
$79.00
1 In Stock. Ready to be shipped!

Change of Mind Returns accepted within 7 days of delivery. Customer provides return shipping.

Items must be returned in their original packaging and in the same condition as received. If the item does not meet our return condition policy, a full refund may not be issued.


Expect prompt delivery and easy tracking — every order comes with updates along the way.

Unless otherwise stated in the product listing:

Brand New and Opened New Items: These products are covered by the standard manufacturer's warranty applicable to the product.

Used Items: Used products come with a minimum 2-month EXBOX store warranty, unless a different warranty period is specified in the individual product listing or the product remains covered by the manufacturer's warranty.

About the Product

Item Condition: Used

with original box and accessories, near new condition.

  • 2-month warranty included

  • eBay Full Protection available on selected items (purchased separately)

  • Tax invoice available upon request

  • All items are tested before listing. While we aim for top quality, occasional defects may still occur. However, your money-back is guaranteed. Return postage will be covered if the product is received defective.

  • Images are for illustration purposes; actual item may vary.

Item Description:
(For illustration purposes only. Please refer to Item Condition for details of the actual item.)

MESH ENABLED

The NF18MESH is a CloudMesh Gateway that will work wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the Gateway. The Gateway becomes the WiFi Mesh master node and the WiFi client device roams seamlessly between satellites and the gateway

EASY PAIRING WITH CLOUDMESH SATELLITES

The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in home setup using WPS buttons.

CLOUD ORCHESTRATION

To operate effectively, multiple WiFi access points within the same environment need a centralized point of coordination and control. This is done by the WiFi Analytics Cloud.

In addition to that, the Cloud is performing all the CPU intensive processing and is using sophisticated machine learning techniques to detect and recognize historical WiFi environment patterns to avoid future WiFi interference.

INTUITIVE USER EXPERIENCE

A new user interface offers effortless navigation and greater visibility into the home network for an improved customer experience including features such as a Quick Start Wizard, and a map of connected devices helping end-users to identify connection issues faster and reduce the number and duration of calls to customer service.

The new web interface is smartphone friendly. End-users can scan the QR Code on the back of the gateway to join the WiFi network and access the web interface from any device using cloudmesh.net URL.

MADE FOR NBN AND UFB

Featuring a Gigabit WAN port as well as VDSL2/ADSL2 technologies, the NF18MESH will connect with FTTN, FTTB, FTTC and FTTH. The Gateway also features VoIP for HD quality voice calls with the capacity to connect 2 phones.

WIFI AUTOPILOT

Every NF18MESH Gateway includes the CloudMesh WiFi AutoPilot.WiFi Auto-Pilot constantly scans and analyses the end-user WiFi environment. If any detrimental changes are detected, the AutoPilot adjusts the Gateway’s WiFi parameters. Any action taken is based on a patented and weighted algorithm ensuring that the internet connection experience is not compromised. It ensures that every WiFi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level and at the closest WiFi access point.

WORKS WITH WIFI ANALYTICS PLATFORM

The CloudMesh WiFi Analytics Platform is a turnkey, CPE integrated, cost-effective solution that provides the ultimate visibility into the health of the subscriber’s WiFi home network.

It can dramatically lower operational costs and create superior enduser experiences. It does this by enabling proactive diagnostic, management and control of subscriber’s home WiFi environment, helping to resolve even the most elusive WiFi problems.

PARENTAL CONTROL

Control access for each family member, including filtering social platforms, video streaming and gaming.

Restrict internet access based on time of day.


Technical Specifications

ENVIRONMENTAL AND PHYSICAL

› Operating temperature: 0-40°C,

› Humidity: 10%-95% non-condensing

› Storage temperature: -10-60°C,

› Humidity: 5%-95% non-condensing

› DC Input Voltage: 12V/2A

› Dimensions: 230 (w) x 200 (h) x 75 (d) mm › Weight: 558g

VDSL:

› PPPoE/PPPoA/IPoA/ Static IP/ Dynamic IP/Bridge

› ITU-T G.993.2 VDSL2

› Supports 8a,8b,12a,12b,17a profile

› Supports ATM and PTM

› Supports G.INP

ETHERNET WAN

› PPPoE, DHCP client, Static IP

WIRELESS

› Compatible with IEEE 802.11b,

› IEEE 802.11g,

› IEEE 802.11n and IEEE 802.11ac

› Supports concurrent dual band (2.4GHz/5GHz) wireless

› SSID broadcast or in stealth mode

› Auto/Manual Channel selection

› WEP/WPA/WPA-PSK/WPA2/WPA2-PSK

› WPS button (Wi-Fi Protected Setup)

ROUTING

› Static Route

› Dynamic Route (RIP v1/v2)

› DMZ

› Supports Layer 2 Bridge Mode

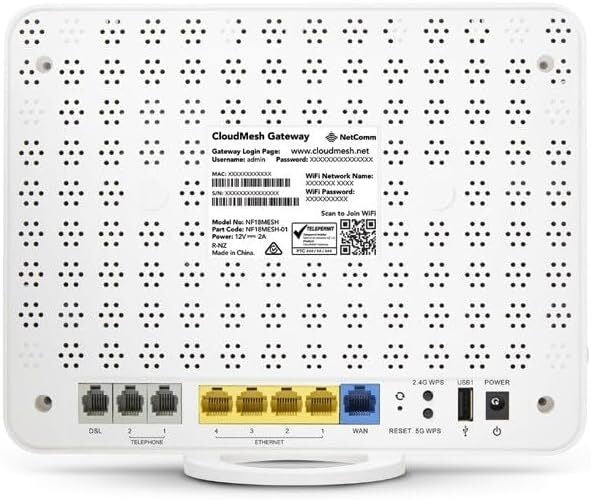

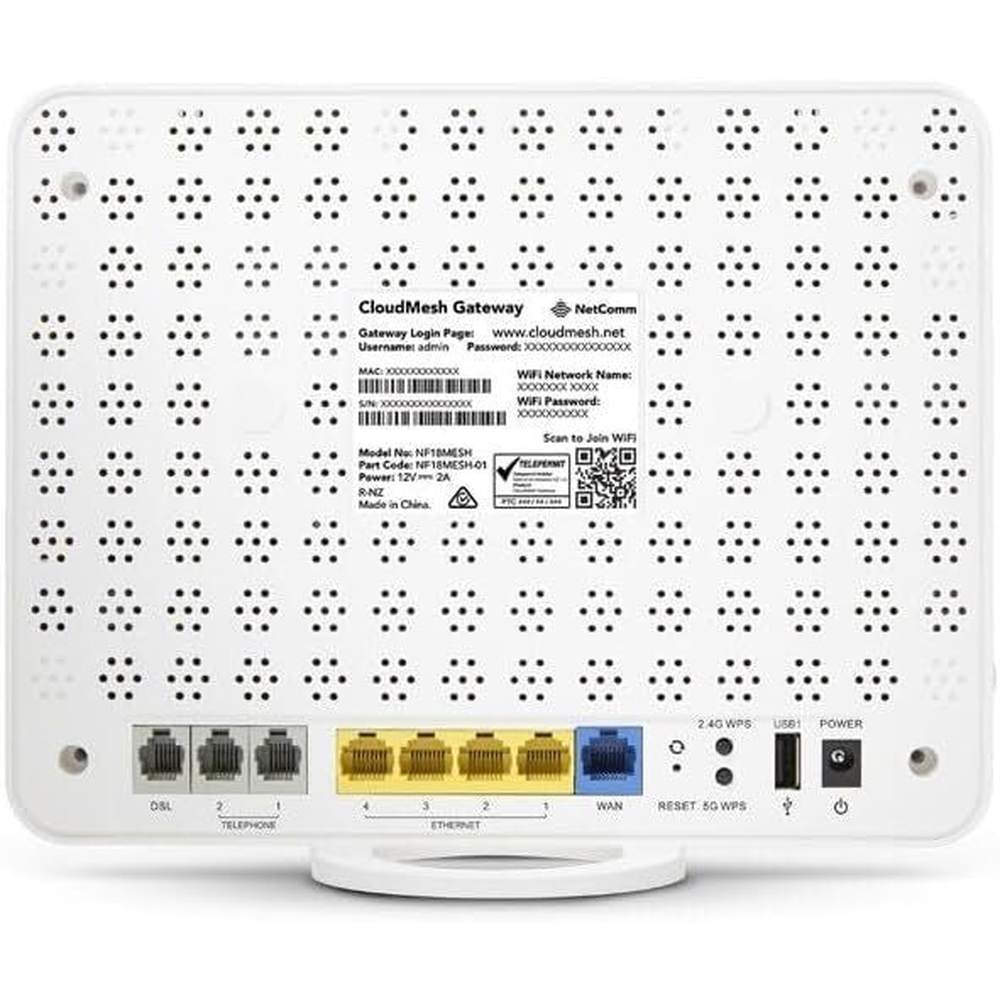

DEVICE INTERFACE

› 1 x RJ45 10/100/1000Mbps WAN port

› 1 x ADSL / VDSL port

› 4 x RJ45 10/100/1000Mbps LAN ports

› 2 x RJ11 Phone ports (VoIP)

› 1 x Reset button

› 2 x WPS buttons (2.4GHz and 5GHz)

› 1 x Power jack › 2 x USB 2.0 Ports (storage)

› 1 x Power switch

› LED (Power/DSL/Internet/WAN/LAN1-4 /2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)

ADSL2+:

› PPPoE/PPPoA/IPoA/Static IP/

› Dynamic IP/Bridge

› ITU G.992.1 (G.dmt)

› ITU G.992.2 (G.lite) › ITU G.992.3

› ITU G.992.3 (Annex J)

› ITU G.992.3 (Annex L)

› ITU G.992.5

› ITU G.992.5 (Annex M)

› Supports multiple PVCs

VoIP PROTOCOL

› SIP2.0

› G.711, G.723 and G.726

› FAX T.38 FAX Relay

MEDIA

› File sharing

› DLNA

SECURITY

› Firewall

› MAC filtering

Brand: NetComm

Type: Modem Router

MPN: NF18MESH

Colour: White
